KPD Series Rail Transfer Cart: Efficient & Optimized Transport for Heavy Industry

I. Introduction

In the modern industrial landscape, transporting heavy materials and equipment remains a significant challenge for factories, production workshops, and warehouses. Traditional solutions, such as forklifts, cranes, or towing vehicles, often have limitations in terms of load capacity, flexibility, and operational costs. Consequently, many businesses are turning to rail transfer carts—specialized vehicles designed to move on tracks, enabling the safe and efficient handling of massive loads.

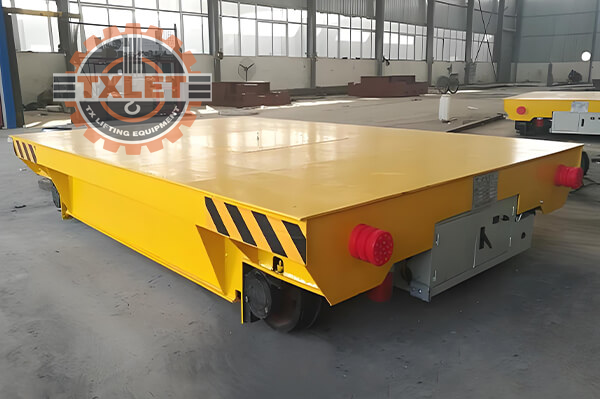

KPD Series Rail Transfer Cart: An efficient heavy load transport solution for diverse industrial applications

1. The KPD series solution

Among the available options, the KPD Series Rail Transfer Cart stands out as an optimal solution for heavy-duty and high-frequency operations. With a load capacity ranging from 2 to 150 tons, this model utilizes a low-voltage, track-powered system, eliminating the need for batteries or trailing cables. Power is supplied directly through insulated rails and converted to drive the traction motor. Thanks to this, the KPD transfer cart can operate continuously without distance limitations while maintaining stable performance over extended periods.

2. Key features & applications

In addition to moving on straight tracks, the KPD rail transfer cart is capable of navigating curved and S-shaped rails smoothly and can operate effectively in high-temperature environments. With its robust structure, advanced safety features, and optional add-ons such as a hydraulic lifting system, this product is widely applied in heavy industries like steel plants, mechanical workshops, shipyards, and automotive manufacturing.

3. Strategic value

The KPD rail transfer cart is more than just a transportation tool; it helps to drive industrial automation, save human labor, optimize operational costs, and increase overall productivity. For firms looking for a solid, long-term, and sustainable investment, this is an excellent strategic choice.

II. Technical specifications

1. Overview

Technical specifications play a pivotal role in selecting the right rail transfer cart, as they determine its ability to meet specific requirements for load capacity, speed, working conditions, and operational costs. With a wide load capacity range of 2 to 150 tons, the KPD Series Rail Transfer Cart offers a comprehensive solution for applications from small workshops to large-scale heavy industries.

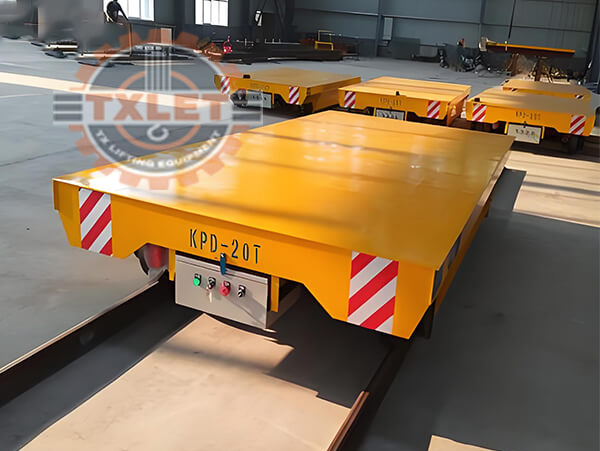

KPD-20T Transfer Cart featuring a robust design and intuitive control system

2. Detailed specifications

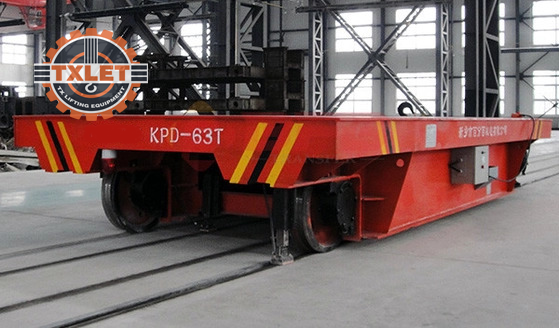

KPD-63T Rail Transfer Cart: Superior transport capabilities for heavy industry

3. Comparison with other transfer cart models

As this comparison demonstrates, the KPD Series rail transfer cart stands out for its ability to function without distance constraints and offer a consistent power supply. This makes it the best option for heavy-load, high-frequency, and continuous applications, which other models cannot consistently match.

III. Structure & working principle

1. Power supply system: The core of the KPD Series

The most prominent feature of the KPD rail transfer cart's structure is its low-voltage track-powered system. Unlike transfer carts that rely on batteries (KPX series) or trailing cables (KPJ series), the KPD operates using power transmitted directly through insulated rails.

This process works as follows:

• Ground transformer: The 380V AC power from the factory is routed to a ground-based transformer. Here, the voltage is stepped down to a safe 36V or 24V to be transmitted through the rails.

• Rail transmission: This low-voltage power is then conducted through the insulated rails, which serve as both the track and the power conductors.

• Onboard transformer: Once on the cart, the low-voltage power is fed into a built-in transformer, which steps it back up to 380V to supply the traction motor.

This mechanism ensures a continuous and stable power supply without any distance limitations, making the KPD series the ideal choice for long-distance and high-frequency applications.

2. Wheels & frame: the foundation of durability

The cart's frame is fabricated from high-strength steel, welded into a solid, single-piece structure. This design provides exceptional load-bearing capacity and resistance to deformation under harsh working conditions. Customers can also choose to add a hydraulic lifting system to the frame for convenient transportation and lifting of goods.

The wheels are made from high-quality alloy steel, guaranteeing excellent wear resistance and durability. Their design allows the cart to move smoothly on straight, curved, or S-shaped rails, accommodating complex factory layouts.

3. Drive system & motor

The drive system of the KPD rail transfer cart consists of:

• An electric motor with a power output from 0.8 to 16 kW, depending on the load capacity.

• A gearbox connected to the motor, which generates enough torque to pull heavy loads.

• The drive shaft and wheels work together to ensure the cart moves smoothly with minimal vibration, maintaining stability even when transporting maximum loads.

This design not only optimizes performance but also extends the life of the motor and minimizes maintenance costs.

4. Control & safety system

To ensure safe and flexible operation, the KPD series rail transfer cart is equipped with:

• An onboard control panel for direct operation.

• A remote control for safe operation from a distance.

• Advanced safety features, including an emergency stop button, overload protection, and short-circuit protection.

• The ability to integrate with automation systems, such as PLC or automated production lines, turns the KPD into an integral part of your factory's smart logistics solution.

5. Operating principle

The working principle of the KPD rail transfer cart can be summarized as follows:

• 380V power from the grid is stepped down to 36V or 24V at a ground transformer.

• The low-voltage power is transmitted through the insulated rails to the cart.

• An onboard transformer steps the voltage back up to 380V to power the motor.

• The motor turns the gearbox and wheels, causing the cart to move.

This mechanism ensures the cart is not limited by distance, providing stable, continuous, and safe operation throughout its working cycle.

[ With its robust structure, unique power supply system, and reliable operating principle, the KPD rail transfer cart proves its ability to operate safely, efficiently, and sustainably even under the most demanding conditions. In the next section, we will analyze the outstanding features and superior benefits of this product in detail.

IV. Key features & advantages

Choosing a rail transfer cart is not just about load capacity or speed; it's about selecting a solution with features that guarantee stable, safe, and cost-effective operation in the long term. This is why the KPD Series Rail Transfer Cart is the preferred choice for heavy industries, thanks to its outstanding advantages.

1. No trailing cables – safer & neater

One of the most significant differences between the KPD rail transfer cart and other models is its power supply method. Instead of using a trailing cable like the KPJ series, the KPD receives power directly through insulated rails, eliminating the clutter and risk of accidents caused by loose cables. This not only makes the workspace cleaner and more professional but also significantly enhances safety for operators. In factories with high traffic, the absence of a trailing cable greatly reduces the risk of incidents.

2. Flexible operation on various track types

Unlike many other transfer carts limited to straight lines, the KPD series can operate on:

• Straight tracks: For simple, fast, and efficient movement.

• Curved/S-shaped tracks: Adapting to complex factory layouts and saving installation space. This flexibility is especially crucial for plants with narrow production spaces or layouts with many turns, where other transfer carts or forklifts would be limited.

3. Performance in harsh environments

The KPD rail transfer cart is engineered to work in high-temperature environments, such as steel mills, foundries, or heat treatment lines. Thanks to its low-voltage power system and heavy-duty steel frame, the cart maintains stable performance without being affected by heat. This is a clear advantage over battery-powered models (KPX), whose battery lifespan and performance are significantly limited in hot or continuous-use environments.

4. High customization options

Another key benefit is the high degree of customization. The manufacturer can design the wheel gauge (1200–7000 mm), running speed, load capacity, and cart dimensions to meet specific requirements. Additionally, customers can opt to integrate:

• A hydraulic lifting system, combining transportation and lifting functions to save on auxiliary equipment.

• Advanced safety sensors, including collision warnings and travel limiters.

• PLC connectivity to synchronize with automated production lines. This allows each KPD rail transfer cart to be a tailor-made solution for every client's unique needs.

5. Continuous operation – unlimited distance

Unlike the KPX series, which is limited by battery capacity, or the KPJ series, which is restricted by cable length, the KPD rail transfer cart can travel an unlimited distance as long as the rails are properly installed and insulated. This makes it ideal for production lines requiring high-frequency, 24/7 operation. Businesses can rest assured that the equipment will always be ready, with no need for downtime to charge batteries or manage cables.

6. Safe & easy to operate

The KPD is equipped with a versatile control system for ease of use:

• An onboard control panel for direct operation.

• A remote control for safe operation from a distance. In addition, standard safety features like an emergency stop, overload protection, and short-circuit protection are all built in. For factories moving toward automation, the KPD can also be connected to a central control system or PLC, making it a seamless part of the production chain.

7. Long-term economic value

Investing in a KPD rail transfer cart provides clear economic benefits:

• No battery replacement, eliminating battery maintenance costs.

• No trailing cables, reducing repair costs and the risk of damage.

• A long product lifespan and a robust structure with minimal maintenance needs.

• Reduced labor costs, thanks to its automation capabilities and continuous operation. When calculating the Total Cost of Ownership (TCO), the KPD series offers superior long-term value compared to many other transport solutions.

Application of the KPD Series cart in transporting large volumes of goods in logistics centers

V. Applications & FAQs

1. Applications of the KPD Rail Transfer Cart

The KPD Rail Transfer Cart is a versatile and powerful solution with a wide range of applications across various heavy industries. Its robust design and superior performance make it an ideal choice for streamlining logistics in the following sectors:

Heavy Machinery Manufacturing: Serves as a vital tool for transporting molds, machinery, and other super-heavy equipment between workshops. It provides a safer and more efficient alternative to traditional forklifts or towing vehicles.

Steel & Metallurgy Industry: Specifically designed to transport hot steel coils, billets, and molten metals within furnaces or rolling mills. Its stable operation is crucial for handling the extreme temperatures and heavy dust found in these environments.

Shipbuilding & Offshore Industry: Essential for moving large steel structures, ship modules, and heavy marine equipment. Its ability to navigate curved tracks makes it perfectly suited for the complex layouts of modern shipyards.

Automotive & Railway Industry: A key component in assembly lines, used for moving car bodies, engines, and train carriage frames. It ensures high precision and safety in mass production by providing stable, vibration-free transport.

Warehouse & Logistics Centers: Optimizes the flow of large-volume goods within warehouses. It can be integrated with automated systems to enhance logistics efficiency and support continuous 24/7 operations.

Construction Materials Industry: Applied for transporting cement, precast concrete, and other heavy construction elements used in building bridges and skyscrapers. It helps to reduce labor costs and shorten project timelines.

2. FAQs about KPD Rail Transfer Cart

Q1: What is the maximum load capacity of the KPD Rail Transfer Cart?

➡️ The cart can handle loads from 2 tons up to 150 tons, and can be custom-designed for even higher capacities upon request.

Q2: Can the cart operate on curved tracks?

➡️ Yes. The KPD Rail Transfer Cart can be custom-designed to run on curved tracks, S-shaped tracks, or tracks with crossing angles.

Q3: How long can the cart operate continuously?

➡️ Thanks to its rail-powered system, the cart can operate continuously for extended periods without the limitations of batteries.

Q4: Is it possible to adjust the running speed?

➡️ Yes. The cart is equipped with a variable frequency drive system, allowing for flexible speed adjustments (typically from 0–20m/min).

Q5: Can the cart be used in high-temperature or dusty environments?

➡️ Absolutely. Both the cart's frame and electrical system are specially designed to withstand high temperatures, dust, and harsh environments found in metallurgy or steel casting plants.

VI. About Us

About TXLET – Your Trusted Partner in Industrial Lifting Solutions

With over 10 years of experience in providing industrial lifting solutions, TXLET is proud to be a trusted partner to thousands of domestic and international businesses. We specialize in the manufacturing, distribution, and installation of lifting equipment that meets international standards for safety, performance, and durability.

TXLET's strengths:

• Diverse Product Range: From Rail Transfer Carts and Overhead/Gantry Cranes to Electric Hoists.

• Customized Solutions: We design and manufacture equipment tailored to each client's specific requirements, from small-scale to heavy-duty applications.

• Nationwide Distribution: We support delivery and installation services at factories and construction sites across the country.

• Professional After-Sales Service: We offer long-term warranties, 24/7 technical support, and genuine spare parts.
