The Electro-Hydraulic Multi-Flap Grab: A Game-Changer in Material Handling

I. Introduction to the Electro-Hydraulic Multi-Flap Grab

1. What is an Electro-Hydraulic Multi-Flap Grab?

An Electro-Hydraulic Multi-Flap Grab is a specialized piece of equipment designed to handle bulky, non-uniform materials such as scrap metal, pig iron, ore, metallurgical slag, industrial waste, and biomass. This advanced equipment uses an independent hydraulic cylinder to control each claw, ensuring a powerful and precise grip. This design minimizes material loss during loading and unloading operations.

This grab is widely used in steel mills, seaports, recycling centers, biomass power plants, as well as in the mining and construction industries. With a design optimized for harsh working environments, the Electro-Hydraulic Multi-Flap Grab provides a safe, efficient, and cost-effective solution for businesses.

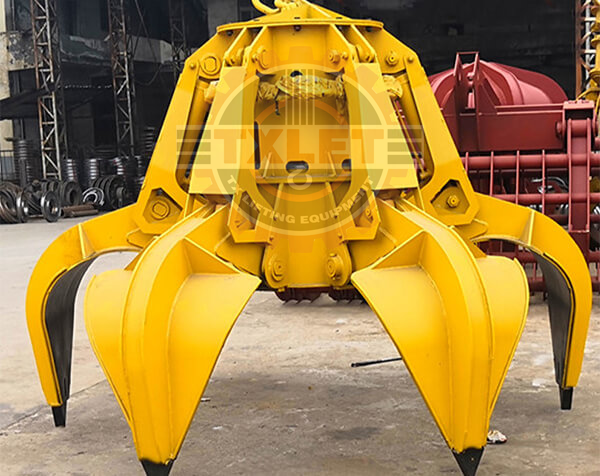

TXLET Electro-Hydraulic Multi-Flap Grab, robustly designed for optimal material handling performance.

2. The product's role in today's industry

As the heavy industry and material handling sectors continue to grow, there's an increasing need to speed up loading and unloading, reduce labor costs, and enhance safety. The Electro-Hydraulic Multi-Flap Grab has become an essential tool, playing a crucial role in:

• Optimizing handling efficiency: Its rapid open/close cycle saves time and increases the amount of material handled per shift.

• Application versatility: With various flap configurations, it can effectively handle everything from heavy metal scrap to lighter biomass materials.

• Reducing safety risks: By limiting manual intervention, it significantly improves worker safety in high-risk environments.

• Enhancing Automation: It can be easily integrated with modern electro-hydraulic crane systems, supporting the trend towards automation in factories and ports.

3. The product's importance

The Electro-Hydraulic Multi-Flap Grab is more than just an auxiliary device; it is a critical link in the industrial logistics and production chain.

• In the metallurgy and metal recycling industry, this grab quickly processes large volumes of scrap, ensuring a continuous supply of raw materials for furnaces.

• At seaports and storage facilities, the equipment helps offload bulk materials, reducing congestion and increasing port capacity.

• For the biomass energy sector, the device ensures a steady supply of raw materials, helping to maintain stable operations at power plants.

By combining advanced technology, high durability, and diverse adaptability, the Electro-Hydraulic Multi-Flap Grab continues to solidify its position as an indispensable piece of equipment in modern industries.

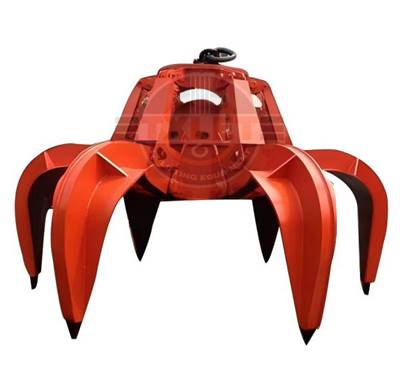

TXLET Electro-Hydraulic Multi-Flap Grab, robustly designed for optimal material handling performance.

II. Technical Specifications & Comparison

1. Technical Specifications

The table below summarizes the core technical specifications of the Electro-Hydraulic Multi-Flap Grab. Values can be customized based on material type, number of flaps, and specific working environment.

2. Comparison with other grab types

This comparison table clarifies when to choose an Electro-Hydraulic Multi-Flap Grab over other common grab types.

III. Working principle

The Electro-Hydraulic Multi-Flap Grab operates based on a powerful combination of an electric motor, a hydraulic pump, and an independent hydraulic cylinder system for each grab flap. This design ensures stable, precise, and powerful operation even under demanding, heavy-duty conditions.

1. Basic structure

• Integrated electric motor & hydraulic pump: A power pack mounted directly on the grab's body provides an independent hydraulic energy source. This means the grab is not dependent on the crane's wire rope mechanism or hydraulic system.

• Independent hydraulic cylinders: Each flap is driven by its own dedicated cylinder. This ensures that all flaps close and open uniformly, eliminating misalignment and ensuring a secure, tight grip.

• Grab flap mechanism (Claws): Flaps can be round or rectangular, with options for fully enclosed, semi-open, or open configurations to adapt to various material types.

• Control valve & oil distribution system: These components ensure precise oil flow and pressure, leading to smooth operation and fast response times.

• Electrical control system: This allows for operation from the crane cabin or via remote control. It can also be integrated with optional features, such as limit sensors and cycle counters, for enhanced safety and performance monitoring.

2. Working process

• Motor activation: The electric motor is started, which in turn drives the hydraulic pump to generate the necessary oil pressure (180–200 bar).

• Closing: A control signal activates the hydraulic valve, directing high-pressure oil to the cylinders. The cylinders then pull the flaps closed, firmly gripping the material.

• Holding: Thanks to the stable hydraulic pressure, the flaps maintain a secure hold on the material throughout the lifting and lowering process, minimizing spillage.

• Opening: When an opening command is received, the oil is released from the cylinders, allowing the flaps to open simultaneously and discharge the material at the desired location.

• Repetitive cycle: The fast open/close time of just 10–28 seconds significantly shortens handling time compared to many traditional grab types.

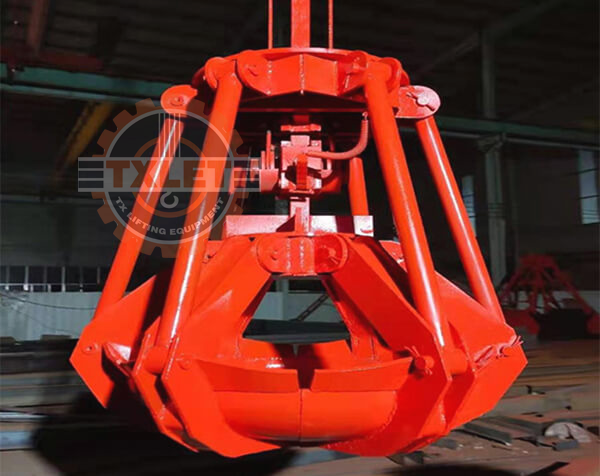

TXLET Electro-Hydraulic Multi-Flap Grab with an enclosed flap design, ideal for collecting and transporting loose materials with minimal spillage.

3. Advantages derived from the working principle

• Crane independence: With its own on-board power pack, the grab is not limited to specific crane types (rope or hydraulic cranes), offering greater versatility.

• High precision: The independent cylinder control ensures uniform closing and opening, reducing material loss, which is particularly critical when handling non-uniform materials like scrap metal or waste.

• High efficiency: The fast cycle time, powerful grip, and ability to operate continuously in heavy-duty conditions lead to superior performance.

• Enhanced safety: By reducing the need for manual intervention, the grab significantly lowers the risk of workplace accidents.

• Automation capability: Its modern control system can be easily integrated into advanced automation setups, aligning with the trend of smart ports and Industry 4.0 factories.

IV. Features, advantages & applications

1. Key features

Independent and powerful hydraulic structure

The Electro-Hydraulic Multi-Flap Grab features a separate hydraulic cylinder system for each grab flap. This ensures that every flap can close and open uniformly, securely gripping materials and minimizing spillage during lifting.

Diverse and customizable design

The number of flaps can be chosen (typically 4–8 flaps) to suit the material type:

• Enclosed flaps: Ideal for small, fine, or loose materials (sawdust, wood chips, household waste).

• Open/semi-open flaps: Used for large, non-uniform materials (metal scrap, industrial waste).

Premium manufacturing materials

Key components are made from high-strength, wear-resistant, and impact-resistant alloy steel, making it ideal for heavy industrial environments. The jaw surfaces can be further reinforced with Hardox or other wear-resistant steel to extend their service life.

High performance

• A fast close/open cycle of just 10–28 seconds ensures quick handling speed.

• A large opening allows for handling volumes from 1m³ to 20m³ per grab cycle.

• Easily connects to various crane types (overhead cranes, tower cranes, gantry cranes, port cranes).

Smart technology integration

In addition to the basic model, the grab can be integrated with optional features like load sensors, remote monitoring systems, or semi-automated controls to enhance management and operational efficiency.

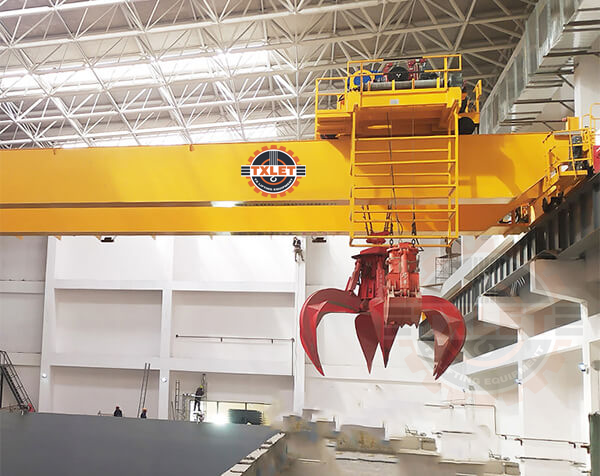

TXLET Electro-Hydraulic Multi-Flap Grab efficiently operates on an overhead crane, optimizing material handling processes within a factory.

2. Operational advantages

Superior productivity: One grab can replace multiple manual laborers, handling hundreds of tons of material per shift and significantly shortening loading and unloading times.

Long-term cost savings: Although the initial investment (CAPEX) is higher than for a mechanical grab, its long lifespan, low maintenance requirements, and high efficiency result in significant long-term operational cost savings (OPEX).

Reduced risks, increased safety: Workers do not need to come into direct contact with scrap, waste, or hazardous materials, thereby reducing the risk of accidents and health hazards.

High versatility: It can be used for a wide range of materials—from urban waste and industrial scrap to ore and biomass—meaning a single piece of equipment can serve multiple purposes.

Durability and reliability: The enclosed hydraulic system and protective casing allow the equipment to operate stably in dusty, humid, or corrosive environments.

3. Practical applications

Steel & metallurgy industry

• Collecting and handling steel scrap, pig iron, and alloys at scrap yards or melting facilities.

• Efficiently processing metallurgical slag, replacing manual labor.

• Typical use: Steel mills often use a fully enclosed multi-flap grab to minimize the loss of small materials.

Seaports & logistics

• Unloading ore, coal, clinker, and metal scrap from bulk carriers.

• Helps reduce ship mooring time, saving port operational costs.

• Typical use: For unloading coal, a semi-open 6-flap grab handles the material quickly without getting stuck.

Waste & recycling centers

• Collecting, sorting, and transporting household waste, industrial waste, and construction debris.

• Used at waste incinerators or plastic/metal recycling plants.

• Advantage: It can handle non-uniform, irregularly sized materials that rope or mechanical grabs struggle with.

Biomass energy sector

• Transporting wood chips, rice husks, straw, nutshells, and coffee husks.

• Ensures a continuous and stable supply of raw materials for burners or biomass power plants.

Mining & construction

• Handling and transporting rock, soil, ore, and other heavy, bulky materials.

• Used in mining operations and large infrastructure construction sites.

Thanks to its advanced hydraulic technology, flexible design, and widespread applications, the Electro-Hydraulic Multi-Flap Grab is a strategic piece of equipment in the modern material handling industry, favored by businesses looking to boost productivity and optimize costs.

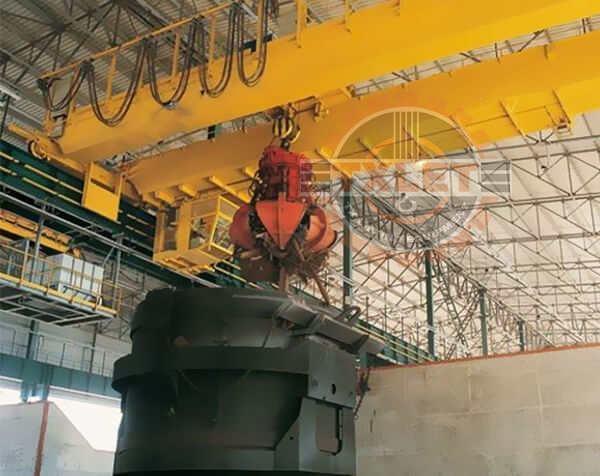

Real-world application of the TXLET grab in the metallurgy industry, loading scrap into a furnace to ensure a continuous raw material supply chain.

V. Choosing the right Grab

1. How to choose the right Electro-Hydraulic Multi-Flap Grab

To select the ideal electro-hydraulic multi-flap grab, you need to consider a few key factors:

• Capacity & weight: Choose a volume (0.5 – 12 m³) and self-weight that matches your crane's lifting capacity and the required processing output.

• Material type: For heavy materials like steel scrap, pig iron, or ore, a grab with enclosed or minimal gaps is best. For lighter materials like waste or biomass, an open or semi-open design reduces sticking and improves efficiency.

• Working conditions: For dusty, high-temperature environments (like foundries or slag yards), select a grab made with wear-resistant materials and a sealed hydraulic system.

• Power & crane compatibility: Check the motor's power (11–45 kW) and hydraulic pressure (180–200 bar) to ensure compatibility with your existing electrical system and crane.

Quick Guide:

• Seaports & Bulk Yards: A semi-open multi-flap grab is often the best choice.

• Steel Mills & Metal Recycling: Go for a fully enclosed or semi-open multi-flap grab.

• Biomass Power Plants & Waste Management: A large-volume, open multi-flap grab is highly effective.

2. Why Choose TXLET?

TXLET is a reputable provider of lifting equipment and grabs, offering several key advantages:

• International quality: Our products are made with high-grade components and undergo strict quality control to ensure long-lasting performance.

• Customization: We design grabs to meet your specific requirements, including the number of flaps, volume, and shape, to perfectly match your industry's needs.

• Proven expertise: We have a strong track record of successful projects at seaports, metallurgical plants, and recycling yards.

• Comprehensive service: We provide full support, including technical consulting, installation, and maintenance, to ensure smooth operation and minimize downtime.

3. FAQs – Frequently Asked Questions

Q1: What types of cranes can an electro-hydraulic multi-flap grab be used with? It can be installed on most types of overhead cranes, floating cranes, and port cranes, as long as the crane meets the required lifting capacity.

Q2: Is maintenance complicated?

No. The grab uses a self-contained hydraulic system and only requires regular maintenance (like checking hydraulic fluid and cylinders) to maintain peak performance.

Q3: What is the average lifespan of the grab?

It typically lasts 8–10 years under normal operating conditions and even longer with proper, routine maintenance.
